46. Syntax Highlighting Source Code

Developers are accustomed to seeing source code colorized to emphasize the code’s structure (i.e., keywords, types, delimiters, etc.). This technique is known as syntax highlighting. Since this technique is so prevalent—one could say expected—Asciidoctor integrates a wealth of libraries to syntax highlight the source code blocks in your document. The list of integrated libraries includes Rouge, CodeRay, Pygments, highlight.js, and prettify.

46.1. Enabling Source Highlighting

When enabled, syntax highlighting gets applied to listing or literal blocks that have the source block style and a source language. You can define the source language directly on the block or globally using the source-language document attribute. To disable syntax highlighting for a given source block, specify the language as text (or remove the source style).

Syntax highlighting is not enabled by default. To enable syntax highlighting in a document, you must set the source-highlighter document attribute. You can set this attribute in the document or from the CLI or API.

If you set the attribute in the document, it must be defined in the document header.

= Document Title
:source-highlighter: <value>

For example, here’s how to enable syntax highlighting using Rouge:

= Document Title
:source-highlighter: rouge

Source Highlighter vs. Syntax Highlighter

You might notice that the source-highlighter attribute uses the term “source highlighter”, whereas the library that performs the highlighting is referred to as a “syntax highlighter”. What’s the difference?

The generally accepted term for a syntax (aka code) highlighter is “syntax highlighter”.
The syntax highlighter is applied to source blocks in AsciiDoc, hence why we say “source highlighter”.

In other words, the source-highlighter attribute means “use this syntax highlighter to colorize source blocks”.

46.2. Available Source Highlighters

The following table lists the recognized values for the source-highlighter attribute.

Recognized values and supported environments for the `source-highlighter` attribute
Library Name	Attribute Value	Supported Environments
CodeRay	`coderay`	Asciidoctor, AsciidoctorJ, Asciidoctor PDF
highlight.js	`highlightjs`	Asciidoctor, AsciidoctorJ, Asciidoctor.js
prettify	`prettify`	Asciidoctor, AsciidoctorJ, Asciidoctor.js
Pygments	`pygments`	Asciidoctor, Asciidoctor PDF
Rouge	`rouge`	Asciidoctor, Asciidoctor PDF

To use Rouge, CodeRay, or Pygments, you must have the appropriate library installed on your system. See the Rouge, CodeRay, or Pygments section to find installation instructions.

On the other hand, if you’re using a client-side syntax highlighting library like highlight.js or prettify, there’s no need to install additional libraries. The generated HTML will load the required source files from a CDN (or custom URL or file path).

46.3. Applying Source Highlighting

To apply highlighting to source code, you must add the source block style to a listing block, literal block, or paragraph and also specify a source language.

Code block with title and syntax highlighting

.app.rb (1)
[#src-listing] (2)
[source,ruby] (3) (4)
---- (5)
require 'sinatra'

get '/hi' do
  "Hello World!"
end
----

1	An optional title can be added to the block.
2	An optional ID can be added to the block. See Defining an Anchor.
3	Assign the block name `source` to the first position in the attribute list.
4	Assign a source language to the second position.
5	The source block name is typically assigned to listing and literal blocks.

Result: Source block with title and syntax highlighting

app.rb

require 'sinatra'

get '/hi' do
  "Hello World!"
end

Source paragraph

[source,xml] (1)
<meta name="viewport"
  content="width=device-width, initial-scale=1.0">

This is normal content.  (2)

1	Place the attribute list directly on the paragraph.
2	Once an empty line is encountered the syntax highlighting is unset.

Result: Source paragraph

<meta name="viewport"
  content="width=device-width, initial-scale=1.0">

This is normal content.

If the majority of your source blocks use the same source language, you can set the source-language attribute in the document header and assign a language to it.

Source language attribute

:source-highlighter: pygments
:source-language: java

[source]
----
public void setAttributes(Attributes attributes) {
    this.options.put(ATTRIBUTES, attributes.map());
}
----

You can override the global source language by specifying a source language on the block.

[source,ruby]
require 'sinatra'

Additionally, you can use an include directive to insert source code into an AsciiDoc document directly from a file.

Code block inserted from another file

[source,ruby]
----
include::app.rb[]
----

If you specify custom substitutions on the source block using the subs attribute, make sure to include the specialcharacters substitution if you want to preserve syntax highlighting. However, if you do plan to modify the substitutions, we recommend using incremental substitutions instead.

Highlighting PHP source code

The PHP language has two modes. It can either be used as a standalone language (pure mode) or it can be mixed with HTML (mixed mode) by putting it inside PHP tags (a form that resembles an XML processing instruction). This presents some challenges for the syntax highlighter.

If the code in the source block is pure PHP, you should use the language tag php. For example:

[source,php]
----
echo "Hello, World!";
----

If the PHP source is mixed with HTML, you should either use the language tag html+php, as shown here:

[source,html+php]
----
<p>
<?php echo "Hello, World!"; ?>
</p>
----

Or you could use the language tag php and set the mixed option on the source block, as shown here:

[source%mixed,php]
----
<p>
<?php echo "Hello, World!"; ?>
</p>
----

Under the covers, the syntax highlighter is configured to assume an implicit start PHP tag is present when the language tag is php. Both the mixed option and the language tag html+php disable this setting.

46.4. Rouge

Rouge is an elegant, extendable code highlighter written in pure Ruby that supports a vast array of languages.

In order to use Rouge with Asciidoctor, you need the rouge RubyGem. You can use one of the following methods to install Rouge.

Install using gem (all systems)

$ gem install rouge

Install using apt-get (Debian-based systems)

$ sudo apt-get install rouge

Install using dnf (Fedora-based systems)

$ sudo dnf install rubygem-rouge

Once you’ve installed the RubyGem, assign the rouge value to the source-highlighter attribute in the document header to activate it.

:source-highlighter: rouge

You can further customize the source block output with additional Rouge attributes.

rouge-css: Controls what method is used for applying CSS to the tokens. Can be class or style. Default: class.
rouge-linenums-mode (not currently implemented): Controls how line numbers are laid out. Can be table or inline. If line wrapping is enabled on preformatted blocks (i.e., prewrap), and you want to use line numbering on source blocks, you must set the value of this attribute to inline in order for the numbers to line up properly with their target lines. Default: table.
rouge-style: Controls the color theme used to for highlighting. You can find the list of themes in the Rouge code repository.

Customizing a source block with Rouge line numbers

:source-highlighter: rouge

[source,ruby,linenums]
----
ORDERED_LIST_KEYWORDS = {
  'loweralpha' => 'a',
  'lowerroman' => 'i',
  'upperalpha' => 'A',
  'upperroman' => 'I'
   #'lowergreek' => 'a'
   #'arabic'     => '1'
   #'decimal'    => '1'
}
----

46.4.1. Highlight Select Lines

Not to be confused with syntax highlighting, you can configure Rouge to highlight (i.e., emphasize) select lines in order to call attention to them.

The highlight attribute accepts a comma or semi-colon delimited list of line ranges. A line range is represented by two numbers separated by a double period (e.g., 2..5). These numbers correspond to the line numbers of the source block, inclusive, where the first line is 1. This feature is activated on a source block if the highlight attribute is defined and at least one of the line numbers falls in this range.

Highlight select lines in a source block

:source-highlighter: rouge
:docinfo: private

[source,ruby,linenums,highlight=2..5]
----
ORDERED_LIST_KEYWORDS = {
  'loweralpha' => 'a',
  'lowerroman' => 'i',
  'upperalpha' => 'A',
  'upperroman' => 'I',
}
----

You will need to give it some help using extra CSS provided by the following docinfo file:

Docinfo file to support line highlighting with Rouge

<style>
pre.rouge .hll {
  background-color: #ffc;
}
pre.rouge .hll * {
  background-color: initial;
}
</style>

46.5. Pygments

Pygments is a popular syntax highlighter that supports a broad range of programming, template and markup languages.

In order to use Pygments with Asciidoctor, you need Python 2 and the pygments.rb gem.

You do not need to install Pygments itself. It comes bundled with the pygments.rb gem.

You must have Python 2 installed to use pygments.rb. Python 3 is not compatible with the pygments.rb gem. Check that you have a python2 (Linux), python (macOS), or py -2 (Windows) executable on your PATH. (On macOS, verify that the python executable uses Python 2 by running python -V).

Installing Python and the pygments.rb gem via the CLI (cross platform)

$ "`\which apt-get || \which dnf || \which yum || \which brew`" install python (1)
$ gem install pygments.rb (2)

1	Install Python using your package manager
2	Install the pygments.rb gem

Once you’ve installed these libraries, assign pygments to the source-highlighter attribute in your document’s header.

:source-highlighter: pygments

You can further customize the source block output with additional Pygments attributes.

pygments-style: Sets the name of the color theme Pygments uses. To see the list of available style names, see Available Pygments style names. Default: pastie.
pygments-css: Controls what method is used for applying CSS to the tokens. Can be class (CSS classes) or style (inline styles). See Pygments stylesheet to learn more about how the value class is handled. Default: class.
pygments-linenums-mode: Controls how line numbers are arranged when line numbers are enabled on the source block. Can be table or inline. If line wrapping is enabled on preformatted blocks (i.e., prewrap), and you want to use line numbering on source blocks, you must set the value of this attribute to inline in order for the numbers to line up properly with their target lines. Default: table.

Customizing a source block with Pygments attributes

:source-highlighter: pygments
:pygments-style: manni
:pygments-linenums-mode: inline

[source,ruby,linenums]
----
ORDERED_LIST_KEYWORDS = {
  'loweralpha' => 'a',
  'lowerroman' => 'i',
  'upperalpha' => 'A',
  'upperroman' => 'I'
   #'lowergreek' => 'a'
   #'arabic'     => '1'
   #'decimal'    => '1'
}
----

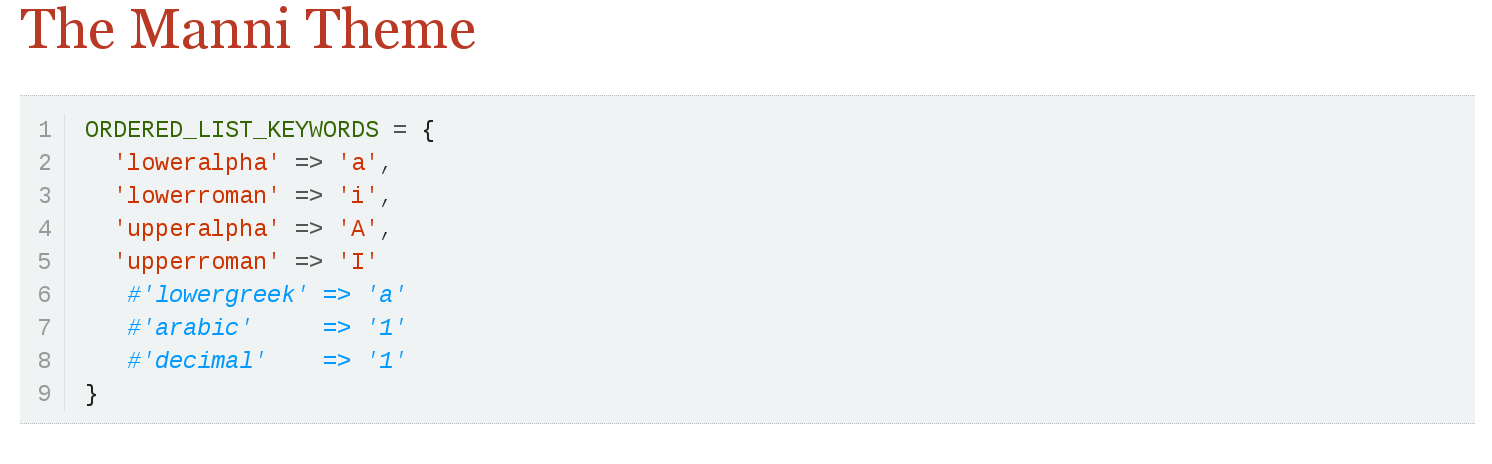

Result: Source block using inline line numbers and the manni theme

Line numbers and a custom Pygments theme for a source block.

46.5.1. Highlight Select Lines

Not to be confused with syntax highlighting, you can configure Pygments to highlight (i.e., emphasize) select lines in order to call attention to them. This feature is activated on a source block if the highlight attribute is defined.

Highlight select lines in a source block

:source-highlighter: pygments

[source,ruby,highlight=2..5]
----
ORDERED_LIST_KEYWORDS = {
  'loweralpha' => 'a',
  'lowerroman' => 'i',
  'upperalpha' => 'A',
  'upperroman' => 'I',
}
----

46.5.2. Available Pygments style names

To list the available Pygments styles, run the following command in a terminal:

$ $(dirname $(gem which pygments.rb))/../vendor/pygments-main/pygmentize -L styles

The pygments.rb gem uses a bundled version of Pygments (often ahead of the latest release). This command ensures that you are invoking the pygmentize command from the Pygments used by that gem.

46.5.3. Using a custom Pygments installation

If you already have Pygments installed on your system, you want to use your own fork, or you want to customize how Pygments is configured, you can get Asciidoctor to use a custom version of Pygments instead of the one bundled with the pygments.rb gem.

First, install your own version of Pygments. You can do this, for instance, by cloning the upstream Pygments repository:

$ hg clone https://bitbucket.org/birkenfeld/pygments-main pygments

Find the directory that contains the file pygmentize or the Makefile. That’s your Pygments installation path. Make note of it.

Next, create a script to run before invoking Asciidoctor for the first time. Let’s call it pygments_init.rb. Populate the script with the following content:

pygments_init.rb

require 'pygments'

# use a custom Pygments installation (directory that contains pygmentize)
Pygments.start '/path/to/pygments'

# example of registering a missing or additional lexer
#Pygments::Lexer.create name: 'Turtle', aliases: ['turtle'],
#    filenames: ['*.ttl'], mimetypes: ['text/turtle', 'application/x-turtle']

You could enhance this script to read the Pygments installation path from an environment variable (or configuration file).

Now just require this script before your invoke Asciidoctor the first time. When using the asciidoctor command, pass the script using the -r flag:

$ asciidoctor -r ./pygments_init.rb document.adoc

When using the Asciidoctor API, require the script using require or require_relative:

require 'asciidoctor'
require_relative './pygments_init.rb'

Asciidoctor.convert_file 'document.adoc', safe: :safe

Now Asciidoctor is using your custom installation of Pygments instead of the one bundled with the pygments.rb gem.

46.6. CodeRay

CodeRay is an encoding-aware, syntax highlighter that supports the languages listed below.

C++

Clojure

CSS

Delphi

diff

ERB

Groovy

HAML

HTML

Java

JavaScript

JSON

Lua

PHP

Python

Ruby

Sass

SQL

Taskpaper

XML

YAML

In order to use CodeRay with Asciidoctor, you need the coderay RubyGem. You can use one of the following methods to install CodeRay.

Install using gem (all systems)

$ gem install coderay

Install using apt-get (Debian-based systems)

$ sudo apt-get install coderay

Install using dnf (Fedora-based systems)

$ sudo dnf install rubygem-coderay

Once you’ve installed the RubyGem, assign the coderay value to the source-highlighter attribute in the document header to activate it.

:source-highlighter: coderay

You can further customize the source block output with additional CodeRay attributes.

coderay-css: Controls what method is used for applying CSS to the tokens. Can be class or style. Default: class.
coderay-linenums-mode: Controls how line numbers are laid out. Can be table or inline. If line wrapping is enabled on preformatted blocks (i.e., prewrap), and you want to use line numbering on source blocks, you must set the value of this attribute to inline in order for the numbers to line up properly with their target lines. Default: table.

Customizing a source block with CodeRay line numbers

:source-highlighter: coderay
:coderay-linenums-mode: inline

[source,ruby,linenums]
----
ORDERED_LIST_KEYWORDS = {
  'loweralpha' => 'a',
  'lowerroman' => 'i',
  'upperalpha' => 'A',
  'upperroman' => 'I'
   #'lowergreek' => 'a'
   #'arabic'     => '1'
   #'decimal'    => '1'
}
----

See the CodeRay stylesheet section to learn about the coderay-css attribute.

46.6.1. Highlight Select Lines

Not to be confused with syntax highlighting, you can configure CodeRay to highlight (i.e., emphasize) select lines in order to call attention to them. This feature is activated on a source block if the following conditions are met:

Line numbering is enabled (i.e., the linenums option). (In CodeRay, the highlight feature is coupled with line numbering).
The highlight attribute is defined.

Highlight select lines in a source block

:source-highlighter: coderay

[source,ruby,linenums,highlight=2..5]
----
ORDERED_LIST_KEYWORDS = {
  'loweralpha' => 'a',
  'lowerroman' => 'i',
  'upperalpha' => 'A',
  'upperroman' => 'I',
}
----

46.7. highlight.js

Highlight.js is a popular client-side syntax highlighter that supports a broad range of languages.

To use highlight.js, simply add the following attribute entry to the header of your AsciiDoc file:

:source-highlighter: highlightjs

By default, Asciidoctor will link to the highlight.js library and stylesheet hosted on cdnjs (currently version 9.15.10). The version of the highlight.js library Asciidoctor loads from the CDN only includes support for languages in the common language bundle (apache, bash, coffeescript, cpp, cs, css, diff, http, ini, java, javascript, json, makefile, markdown, nginx, objectivec, perl, php, properties, python, ruby, shell, sql, xml, and yaml).

To load additional languages supported by highlight.js, list them in the value of the highlightjs-languages document attribute (separated by commas):

:source-highlighter: highlightjs
:highlightjs-languages: rust, swift

If you’d rather use a personal copy of highlight.js instead of the one hosted on the CDN, follow these steps:

Create your custom bundle on the download page.
Download and unpack the zip into a folder called highlight adjacent to your AsciiDoc file (or in the output directory, if different)
Rename highlight/highlight.pack.js to highlight/highlight.min.js
Rename highlight/styles/github.css to highlight/styles/github.min.css
- Replace github with the name of the highlightjs-theme you are using, if different.
Add the attribute entry :highlightjsdir: highlight to the header of your AsciiDoc file.
- Alternatively, you can pass the -a highlightjsdir=highlight flag when invoking the Asciidoctor CLI.

The output file will use your personal copy of the highlight.js library and stylesheet instead of the one hosted on cdnjs.
